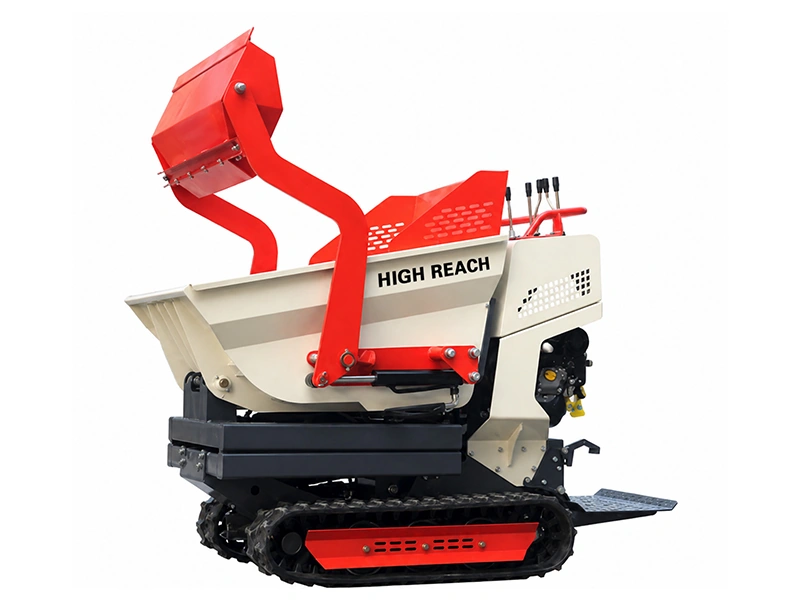

HS-500S Lifting Mini Dumper
YH-500S Lifting Mini Tracked Dumper | 500kg Elevated Tip | Compact Construction — Professional-grade equipment from Shandong Linggao.
Description
Lifting Mini Tracked Dumper | 500kg Elevated Tip
Technical Specifications
| Model | YH-500S |
| Engine Model | Briggs & Stratton Pioneer 12V3 |
| Engine Type | Single Cylinder, Air-Cooled, 4-Stroke |
| Displacement | 203 cc |
| Rated Power | 6.5 HP / 3600 rpm |
| Fuel Type | 92# Gasoline |
| Fuel Tank Capacity | 3.6 L |
| Engine Options | Briggs 19N1 / Kopu 173 / Runtong 212cc (others available) |
| Net Weight | 535 kg |
| Max. Load | 500 kg |
| Cargo Box Capacity | 200 dm³ |
| Chassis Width | 700 mm |
| Track Width | 180 mm |
| Track Ground Contact Length | 900 mm |
| Ground Clearance | 110 mm |
| Dumping Method | Hydraulic Dump |
| Dumping Angle | 90° |
| Max. Lifting Height | 1200 mm |
| Discharge Height | 1050 mm |
| Tip Clearance | 220 mm |
| Overall Dimensions | 2050 × 880 × 1450 mm |
| Cargo Box Dimensions | 1050 × 730 × 730 mm |
| Travel Speed | 2.98 km/h |
| Min. Turning Radius | 1.15 m |
| Track Center Distance | 520 mm |
| Gradeability | 20° |
| Fumigation-Free Wooden Crate | 1630 × 940 × 1450 mm |
| Steel Frame Stacking Package | 1570 × 980 × 2480 mm |
Note: Specifications are subject to change without notice. Please contact us for the latest technical data and customization options.
Additional information
| Model | HS-500S |
|---|
