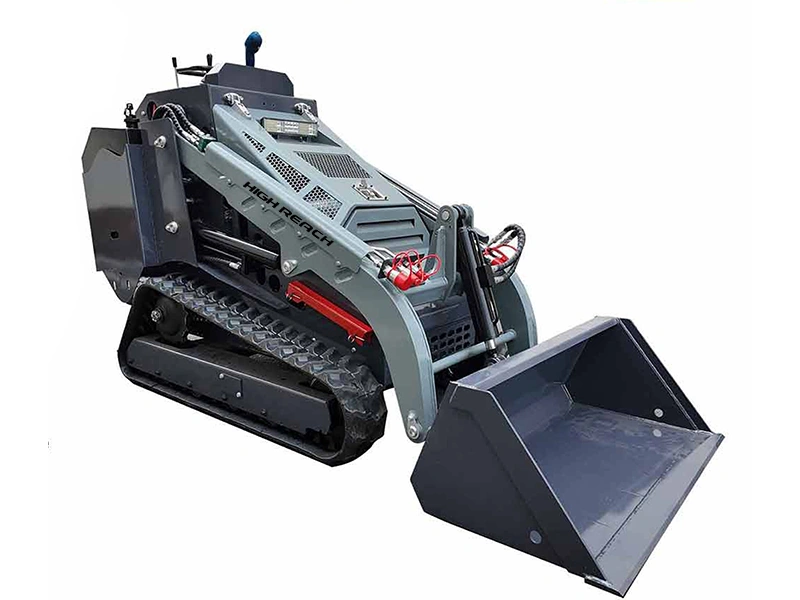

V800 Skid Steer Loader

Description

Category: Compact Construction

Compact earthmoving and material handling equipment engineered for tight-space operation and versatility.

Model	V800
Operating Weight	1729 kg
Bucket Capacity	0.15 m³
Gradeability	25°
Max. Breakout Force	4.5 kN
Rated Load	420 kg
Max. Load	500 kg
Travel Speed	0-4 km/h
Machine Width	911 mm
Rated Pressure	16 MPa
Bucket Width	1020 mm
Max. Loading Height	2000 mm
Max. Dumping Height	1704 mm
Max. Operating Height	2873 mm
Height to Bucket Pin	2195 mm
Bucket Tilt Angle at Max Height	32°
Min. Height	1573 mm
Departure Angle	39°
Ground Clearance	225 mm
Dumping Reach	371 mm
Track Ground Contact Length	1200 mm
Overall Dimensions	2651 × 1020 × 1573 mm
Length with Bucket	2651 mm
Length without Bucket	2084 mm
Track Type	180×72×45
Engine Brand	Kubota
Engine Model	D1105
Rated Power	17.1 (18.2) kW
Cylinders	3
Intake	Naturally Aspirated
Emission Standard	EPA / EU Stage V
Fuel Tank	33 L

Note: Specifications are subject to change without notice. Please contact us for the latest technical data and customization options.
